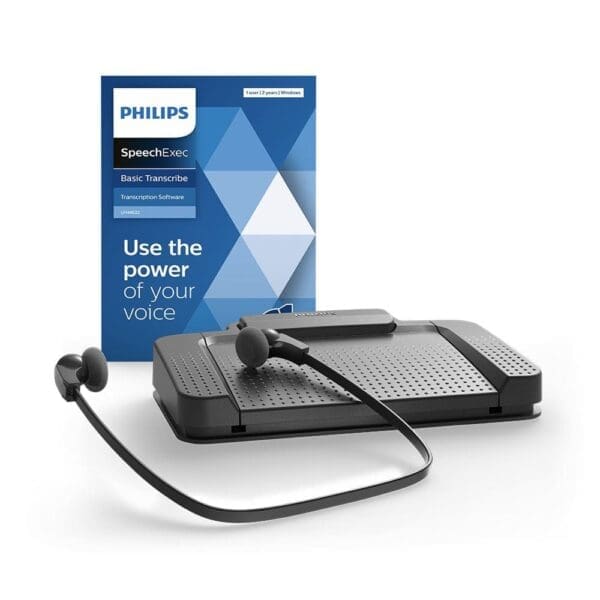

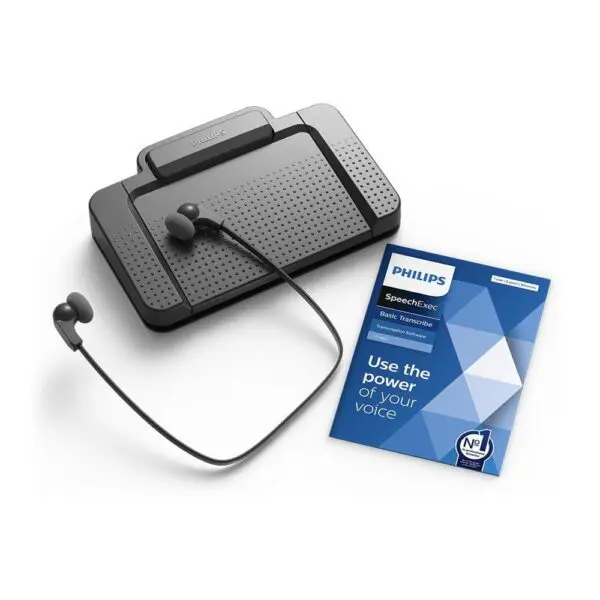

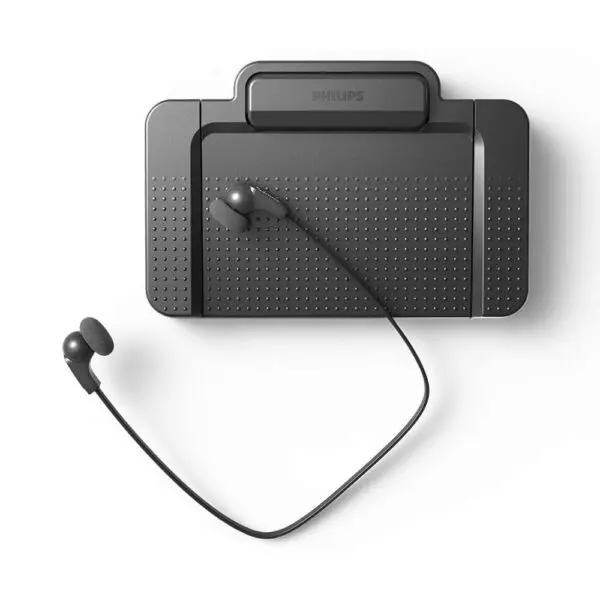

LFH7177 Transcription Kit by Philips


The Philips SpeechExec Transcription Set LFH7177 is a powerful and user friendly digital transcription system that turns your computer into a highly sophisticated transcription machine.

In stock

SKU: lfh7177 Categories: , Brand: Due to Microsoft’s decision to discontinue support for past operating systems, we can only offer technical support for products running on Windows 10 and newer.


Optimize your workflow with a professional document-creation solution

The Transcription Set is a digital document creation solution specifically designed to make transcription easy and intuitive. The ergonomic accessories and the innovative SpeechExec workflow software let you manage your jobs easily.

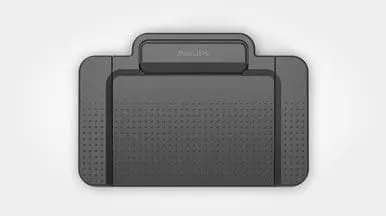

ErgonomicErgonomic foot control for comfortable use even when used over extended periods

The foot control was developed in cooperation with hospital ergonomists and day-to-day power users to ensure a perfectly smooth transcription process with minimal physical strain. Magnetically controlled contact switches, rugged pedals and a waterproof design make it extremely durable and give the device and very long life.

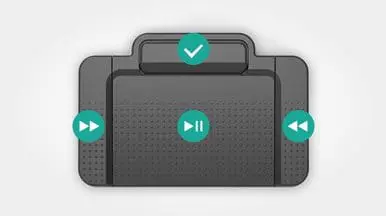

PlaybackFast and efficient playback control for quicker and more accurate transcriptions

Start, pause, rewind and fast-forward audio files with only a slight movement of the foot tip, keeping your hands free for uninterrupted typing.

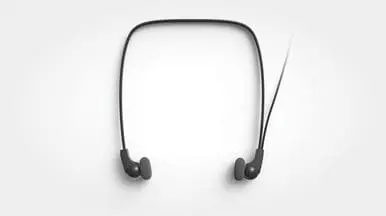

HeadphonesLightweight stereo headphones for enhanced wearing comfort

Lightweight, under-the-chin-style stereo headphones designed to deliver excellent sound quality, with soft ear cushions for enhanced wearing comfort.

WorkflowSpeechExec workflow software for efficient data management

The SpeechExec software organizes the workflow of dictation files and resulting documents between author and transcriptionist and allows them to monitor the status of their work.

PriorityPriority setting and notifications for urgent recordings

With the included priority-setting option, urgent recordings can be prioritized. This guarantees that important dictation files will be identified at a glance and get processed and delivered first.

IntegrationSeamless integration into Philips digital dictation solutions

The transcription set can be seamlessly and easily integrated into existing Philips digital dictation solutions.

  • SpeechExec Basic Transcription Software (2-year subscription included)
  • USB foot control ACC2330
  • Stereo headphones LFH0334
  • User manual

Please Note: The version of Philips SpeechExec included with this product is a 2-year subscription of the Philips SpeechExec BASIC software.


  • Configurable foot control
  • Lightweight headphone design
  • Clear job overview
  • Versatile audio player
  • Playback speed control
  • Automatic file routing

Foot control

    • Connectivity: USB plug
    • Product dimensions (W x H x D): 160 mm x 150 mm x 18 mm/6.3″ x 5.9″ x 0.7″
    • Weight: 0.61 kg/1.3 lb


      • Style: under chin
      • Cable connection: one-sided
      • Cable length: 3.0 m/10 ft
      • Connector: 3.5 mm, stereo, right angled
      • Acoustic system: open
      • Magnet type: neodymium
      • Diaphragm: PET dome
      • Voice coil: copper
      • Impedance: 2 × 32 Ohm
      • Maximum power input: 2 × 10 mW
      • Sensitivity: 103 dB
      • Speaker diameter: 14 mm/0.6″
      • Sound quality: optimized for voice playback
      • Connector finish: gold-plated
      • Weight: 53 g/0.12 lb

System requirements for Philips SpeechExec software

      • Processor: Intel dual core or equivalent AMD processor, 1 GHz or faster processor
      • RAM: 4 GB (64 bit)
      • Hard-disk space: 100 MB for SpeechExec software, 4.5 GB for Microsoft .NET Framework
      • Operating system: Windows 10 Pro/Enterprise (64 bit)
      • Graphics: DirectX-compliant graphics card with hardware acceleration recommended
      • Sound: Windows-compatible sound device
      • Browser: Internet Explorer 9 or higher, or the current version of Chrome or Firefox
      • Free USB port
      • Headphone output or speakers
      • Internet connection

Green specifications

    • Compliant to 2011/65/EU (RoHS)
    • Lead-free soldered product

Additional information

Weight 2.5 lbs
Usually Ships



, ,

Local Availability

Software Category

Desktop or PC Based Station

Foot Pedal Type
